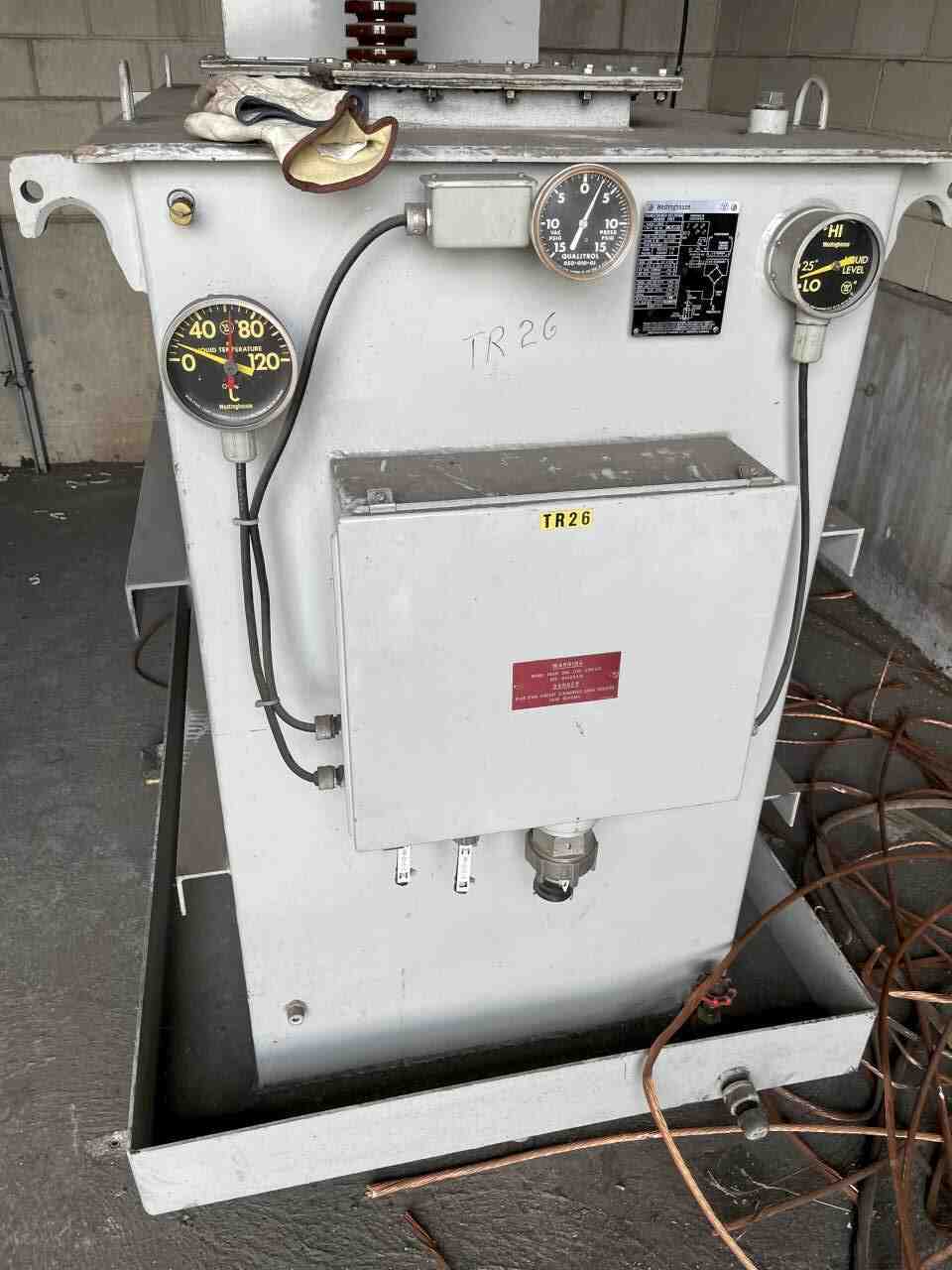

835-000061Westinghouse Transformer
| Type | Electrical Component |
|---|---|
| Asset ID | 835-000061 |
| Description | |
| Manufacturer | |
| Model | IB H55000-TR-1 |

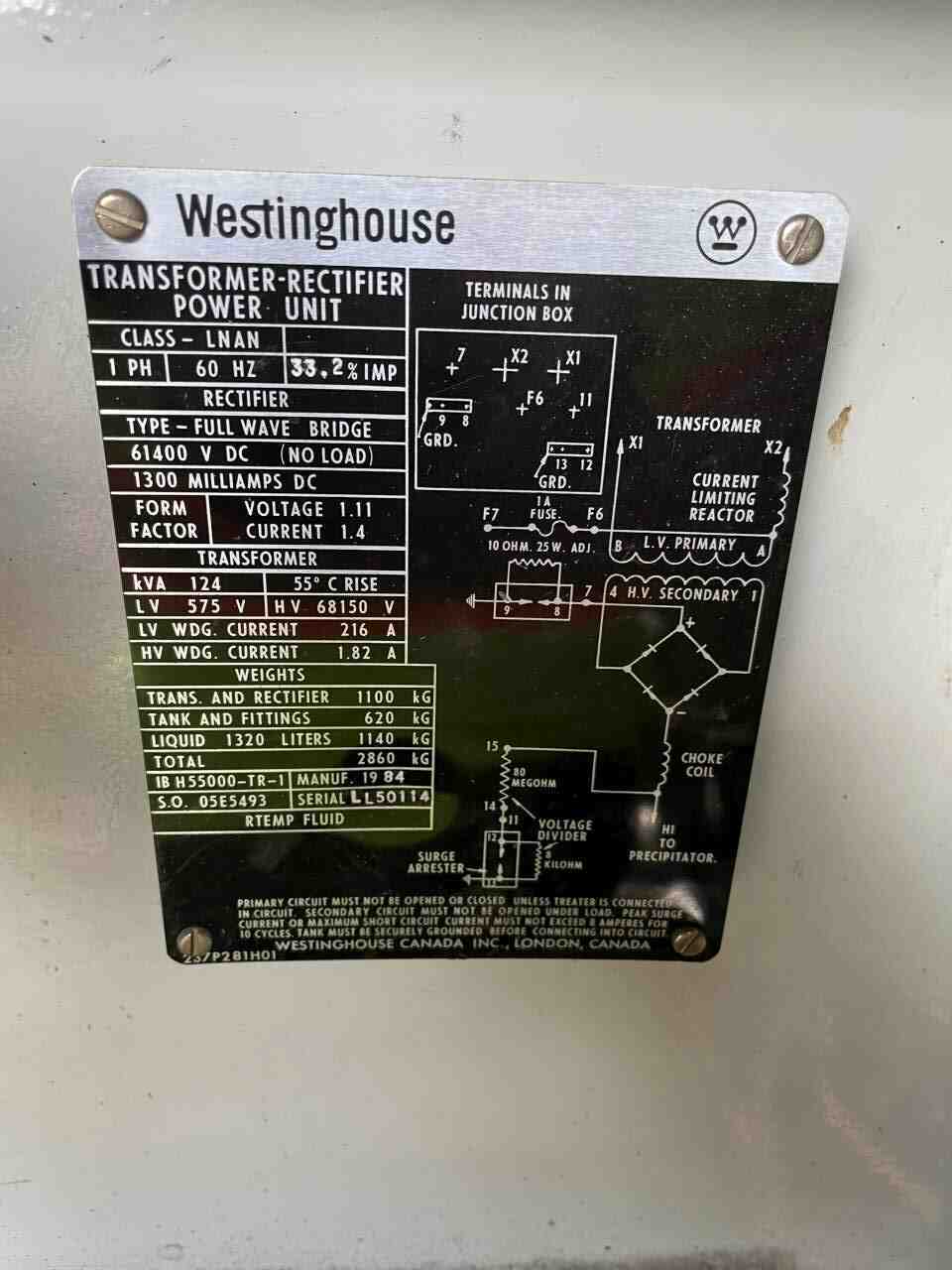

| Specification | Rectifier Power Unit Class LNAN – 1PH, 60HZ, 33.2% IMP Rectifier Type Full Wave Bridge, 61400V DC (No load) – 1300Milliamps DC, Form Factor V 1.11/Current 1.4 Transformer kVA 124, 55Deg C Rise, LV 575 V, HV 68150, LV WDG, Current 216 A, HV WDG, Current 1.82 A. |
| Serial | LL50114 |
| Location | Hinton, AB |
