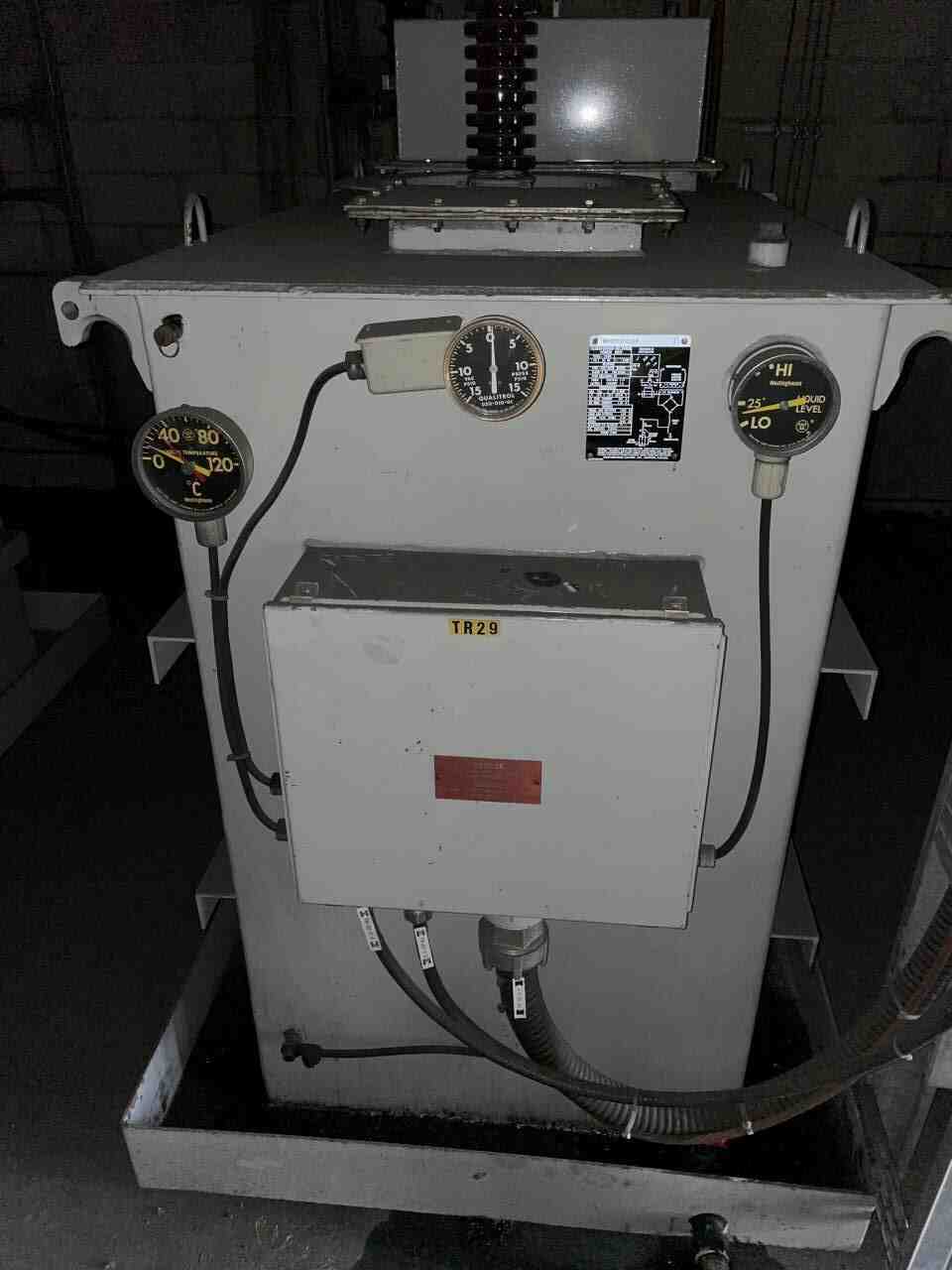

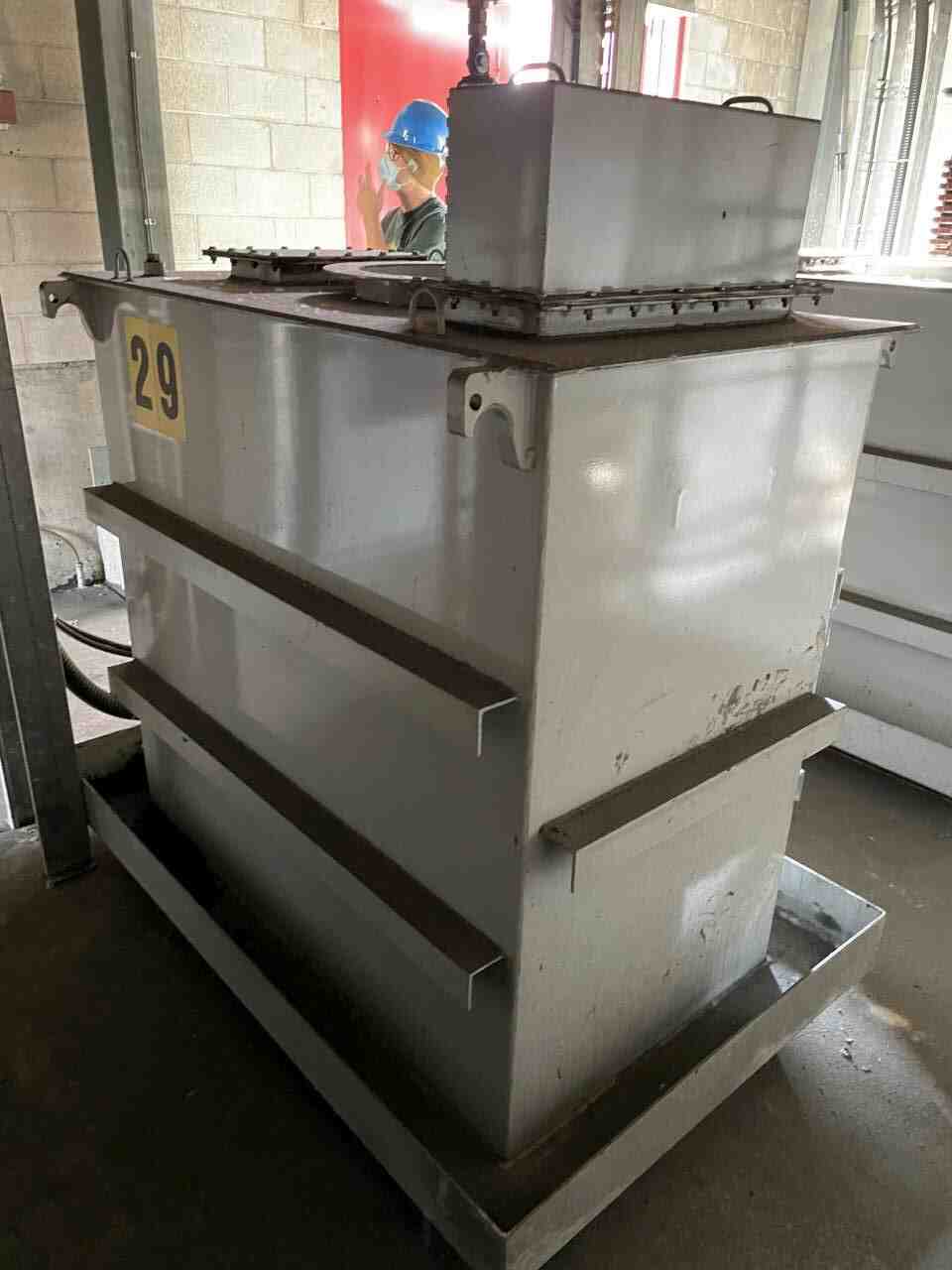

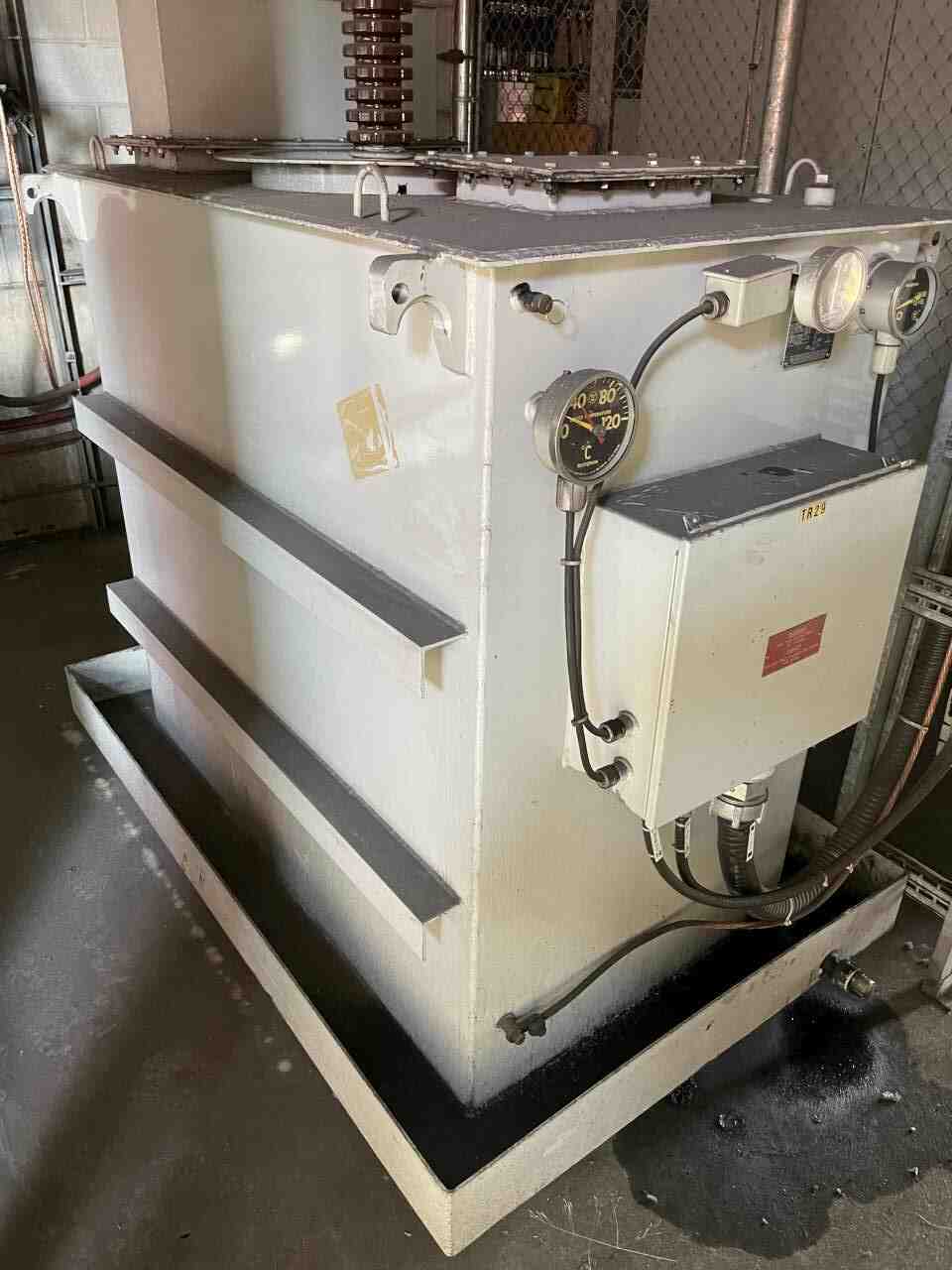

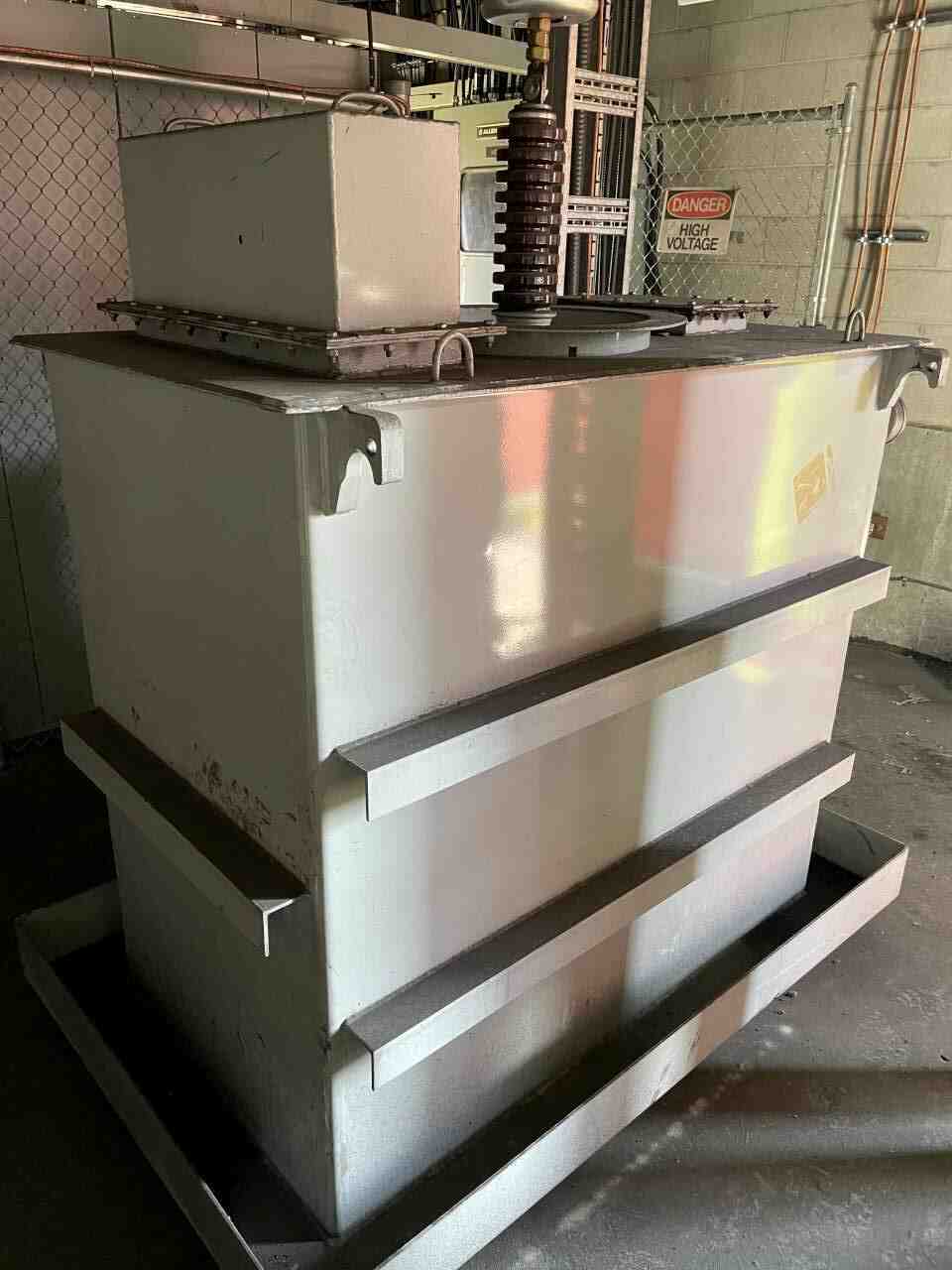

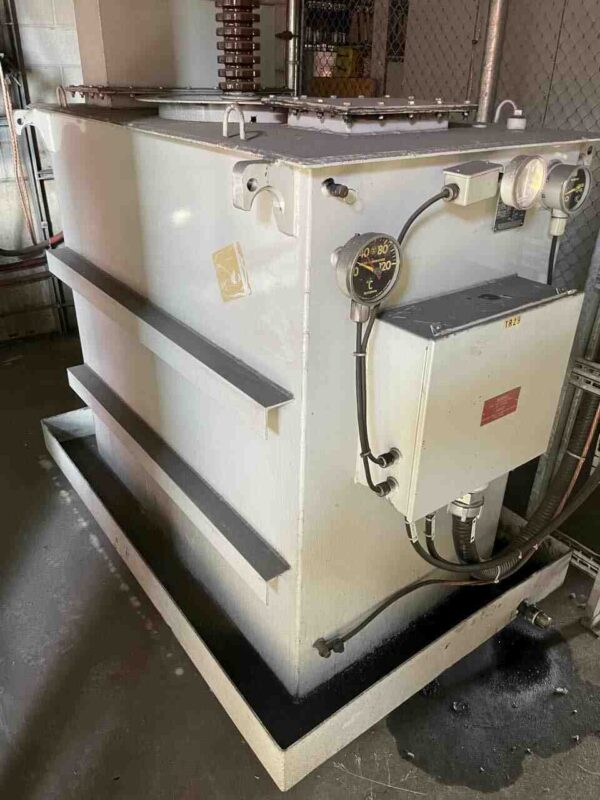

835-000066Westinghouse Transformer

Type Uncategorized
Asset ID

835-000066

Model

IB H55000-TR-1

Specification

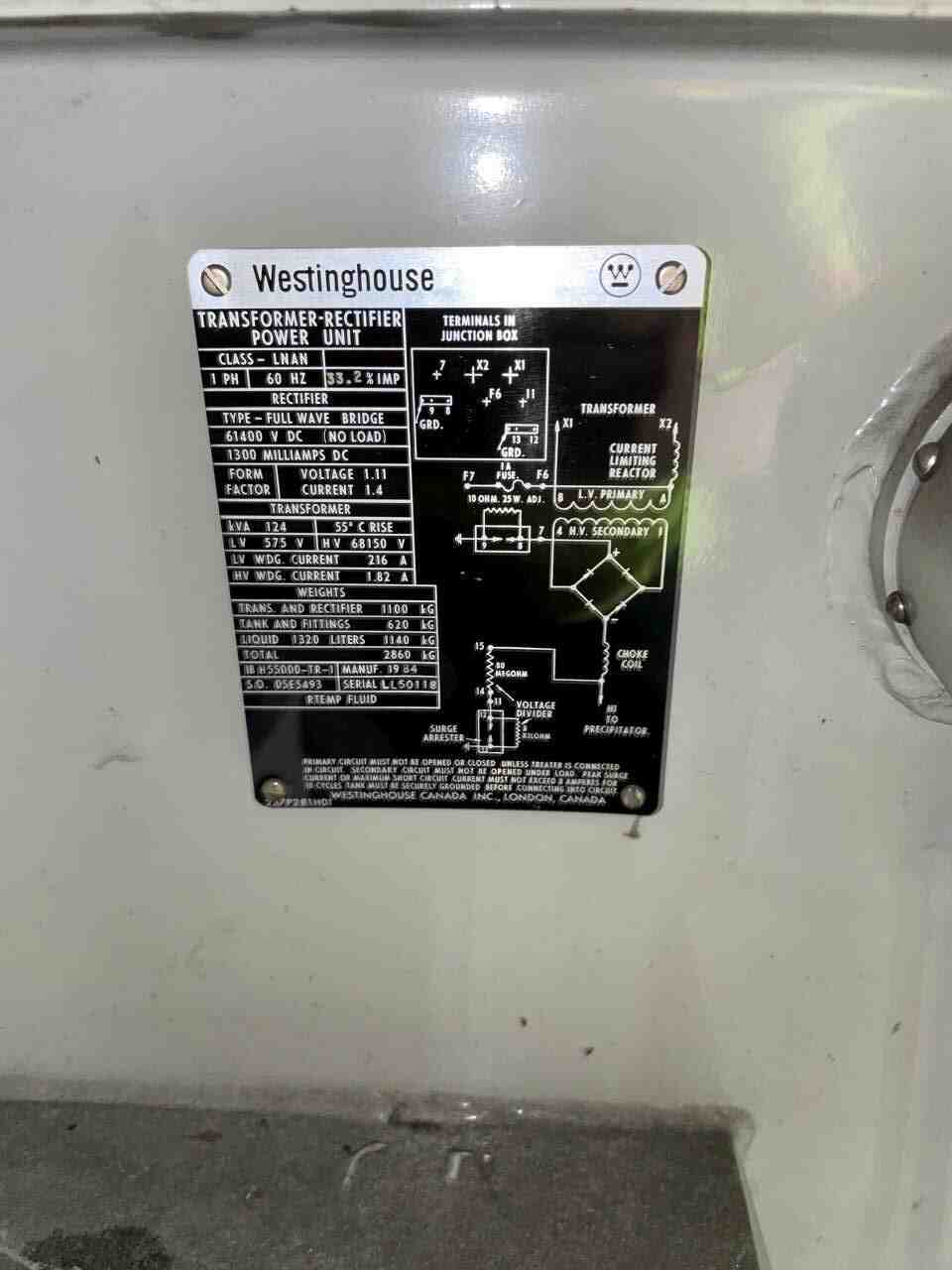

Rectifier Power Unit, Class LNAN, 1PH, 60Hz, 33.2% IMP, Rectifier Type- Full Wave Bridge, 61400V DC, 1300 Milliamps DC, Form Factor Voltage 1.11, Current 1.4 Transformer kVA 124 – 55Deg C rise , LV 575V, HV 68150V, LV WDG, Current 216A , HV WDG, Current 1.82A.

Serial

LL50118

Condition

Good

Location

Hinton, AB
